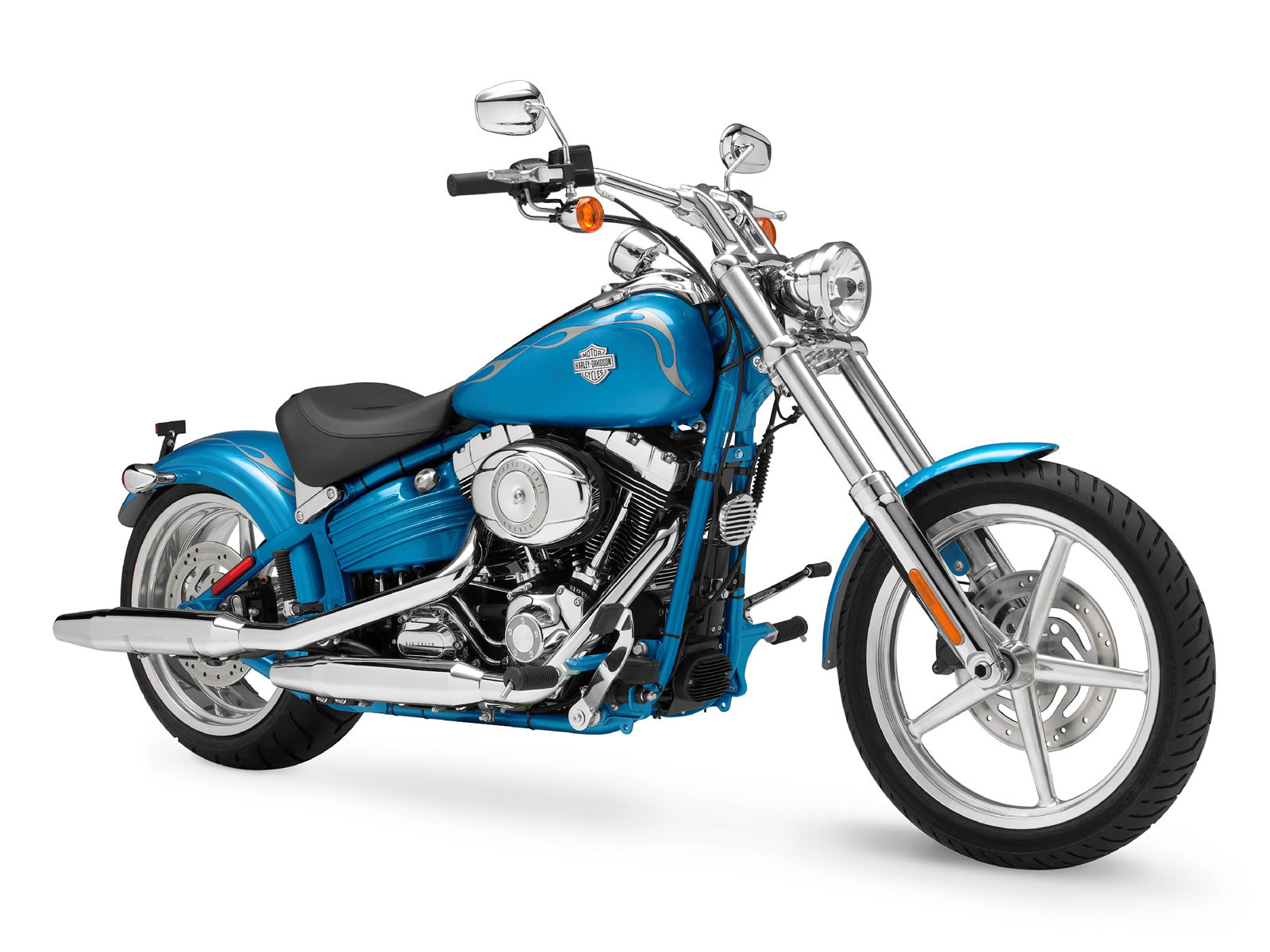

With
breakthrough design features like a rear fender mounted directly to
the swingarm and no visible fender supports, the Rocker C motorcycle
is a slammed, sleek and stylish stunner straight from the factory.
Chromed out from front to back, it faithfully reproduces the authentic
lines of rigid-suspension customs, but delivers a modern, comfortable
ride. Designed to turn heads, the Rocker C model boasts style
elements like a color-matched frame and swingarm, dual, staggered
shorty exhaust, LED stop/turn/tail lights, a raked-out front fork and
ultra-wide rear tire. Perhaps its most notable feature, though, is
the innovative solo-style Trick™ seat, which conceals struts and a
passenger pillion to convert to two-up riding whenever the opportunity
presents itself. Add in the exclusive ghost flame paint scheme, and
the availability of anti-lock brakes with the new Security Package
option, and you have an unbeatable combination of style and function.
Harley-Davidson FXCWC Rocker C Model Highlights
NEW Security Package option including factory-installed Harley-Davidson Smart Security System with hands-free fob and Anti-Lock Braking System (ABS)
NEW Hand controls with fewer wires
NEW Odometer trip switch
NEW Single button hazzard warning
NEW Larger odometer readout with gear and RPM display
o Black powder-coated powertrain with chrome covers
o Chrome exhaust with dual staggered shorty mufflers
o Polished, Cast Aluminum Tapered Five Spoke wheels
o 240 mm rear tire
o Finned cast-aluminum oil tank
o Trick two-in-one seat with concealed passenger pillion
o Chrome adjustable independent internally-wired V-Bar, set in two-piece 5-inch curved riser
o Console-mounted speed shop style speedometer
o Color-matched frame, swingarm and oil tank
o Chrome bullet headlight and fork lowers
o Skinny custom front fender
o Rockertail rear section
o LED brake, turn and tailights
o Deluxe pinstripe flames paint scheme
Key Harley-Davidson FXCWC Rocker C Key Features
With
breakthrough design features like a rear fender mounted directly to
the swingarm and no visible fender supports, the Rocker™ C motorcycle
is a slammed, sleek and stylish stunner straight from the factory that
looks and rides like nothing before it. Chromed out from front to
back, it faithfully reproduces the authentic lines of rigid-suspension
customs, but delivers a modern, comfortable ride.
Designed to turn heads, the Rocker C model boasts style elements like a color-matched frame and swingarm, dual, staggered shorty exhaust, LED stop/turn/tail lights, a raked-out front fork and ultra-wide rear tire. The Rocker C is everything people said a stock Harley-Davidson model couldn't be.
Perhaps its most notable feature, though, is the innovative solo-style Trick seat, which conceals struts and a passenger pillion to convert to two-up riding whenever the opportunity presents itself.
Add it the exclusive ghost flame paint scheme, and the availability of anti-lock brakes with the new Security Package option, and you have a combination of style and function that beats any custom-style chopper on the market.
Designed to turn heads, the Rocker C model boasts style elements like a color-matched frame and swingarm, dual, staggered shorty exhaust, LED stop/turn/tail lights, a raked-out front fork and ultra-wide rear tire. The Rocker C is everything people said a stock Harley-Davidson model couldn't be.
Perhaps its most notable feature, though, is the innovative solo-style Trick seat, which conceals struts and a passenger pillion to convert to two-up riding whenever the opportunity presents itself.
Add it the exclusive ghost flame paint scheme, and the availability of anti-lock brakes with the new Security Package option, and you have a combination of style and function that beats any custom-style chopper on the market.
o Rigid-mounted, counter-balanced Twin Cam 96B V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI)
o Horseshoe oil tank
o Forward foot controls
o 4.9 gallon fuel tank
Specifications
U.S. MSRP - Vivid Black $19,499 (Deluxe). Solids $19,874 (Deluxe)
DIMENSIONS
Length 95.0 in. (2413 mm)
Overall Width 35.1 in. (892 mm)
Overall Height 46.0 in. (1168 mm)
Seat Height:
• Laden2 25.2 in. (640 mm)
• Unladen 27.4 in. (696 mm)
Ground Clearance 5.1 in. (130.0 mm)
Rake (steering head) 36°
Fork Angle 37°
Trail 6.2 in. (157 mm)
Wheelbase 69.2 in. (1758 mm)
Tires (Dunlop® Harley-Davidson Series, bias blackwall front and radial blackwall rear):
• Front – D408F 90/90-19
• Rear – D407 240/40R18
Fuel Capacity 4.9 gal. (18.5 L) (warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 3.5 qts. (3.3 L)
Transmission Capacity 1.0 qts.
Primary Chain
Case Capacity3 1.0 qts.
Weight:
• As Shipped 686 lbs. (311.0 kg)
• In Running Order 717 lbs. (325.0 kg)
• Gross Vehicle Weight Rating 1175 lbs. (533.0 kg)
• Gross Axle Weight Rating:
• Front 415 lbs. (188.0 kg)
• Rear 760 lbs. (345.0 kg)
ENGINE
Engine4 Air-cooled, Twin Cam 96BTM
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.38 in. (95.3 mm x 111.3 mm)
Displacement 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Paper, washable
Lubrication System Pressurized, dry-sump
DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/66 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
U.S. Gear Ratios (overall):
• 1st 9.311
• 2nd 6.454
• 3rd 4.793
• 4th 3.882
• 5th 3.307
• 6th 2.79
CHASSIS
Frame Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Swingarm Mild steel, round tube sections, forged junctions; MIG welded
Front Forks 49 mm telescopic
Rear Shocks Hidden, horizontal-mounted, coil-over
Wheels5: Polished, 5-spoke Cast Aluminum
• Front 19 in. x 2.15 in. (483 mm x 55 mm)
• Rear 18 in. x 8 in. (457 mm x 203 mm)
Brakes:
• Caliper Type 4-piston front and 2-piston rear
• Rotor Type (diameter x width): Patented, uniform expansion rotors
• Front 11.5 in. x .2 in. (292 mm x 5 mm)
• Rear 11.5 in. x .23 in. (292 mm x 6 mm)
• Anti-lock Braking System (option) Available
Suspension Travel:
• Front Wheel 5 in. (127 mm)
• Rear Wheel 3.1 in. (79 mm)
PERFORMANCE
Engine Torque6 (per SAE J1349):
• North America 92.2 ft. lbs. @ 3000 RPM (125 Nm @ 3000 RPM)
Lean Angle:
• Right 26.8°
• Left 26.8°
Fuel Economy7
(EPA urban/highway test)
35/54 mpg (6.70/4.40 L/100 km)
ELECTRIC
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 38-amp system (439W @ 13V, 2000 RPM, 489W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
• Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
• Stop/Turn/Tail Lights Integrated LED
• Turn Signal Lights 28W (21W) self-canceling
• Indicator Lamps - High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system8 (optional), 6-speed, low fuel warnings
COLOR OPTIONS
Solids
• Vivid Black Deluxe
• Scarlet Red Deluxe
• Cool Blue Pearl Deluxe
• Black Denim Deluxe
